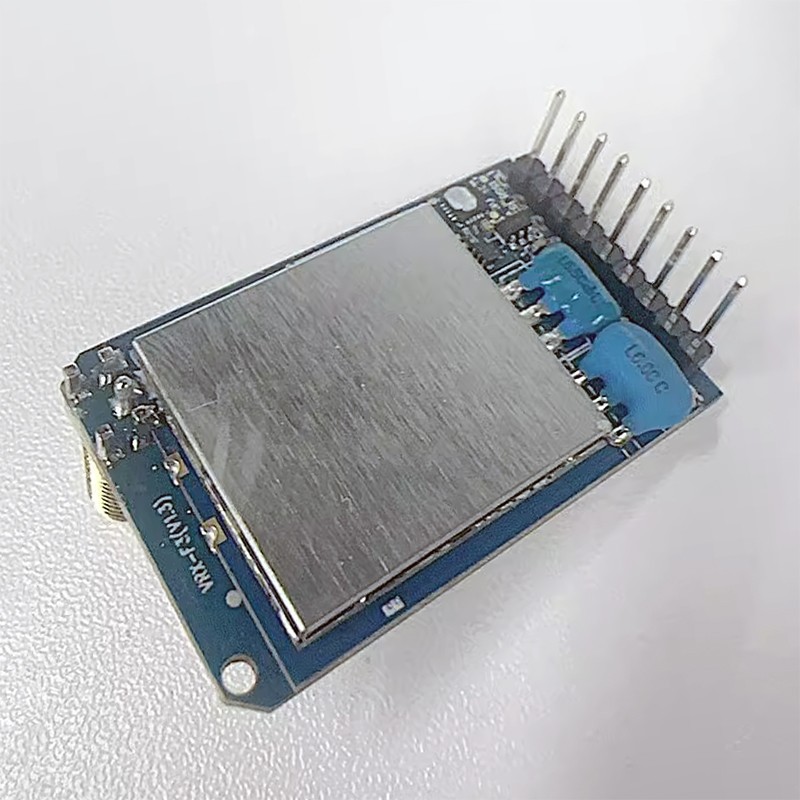

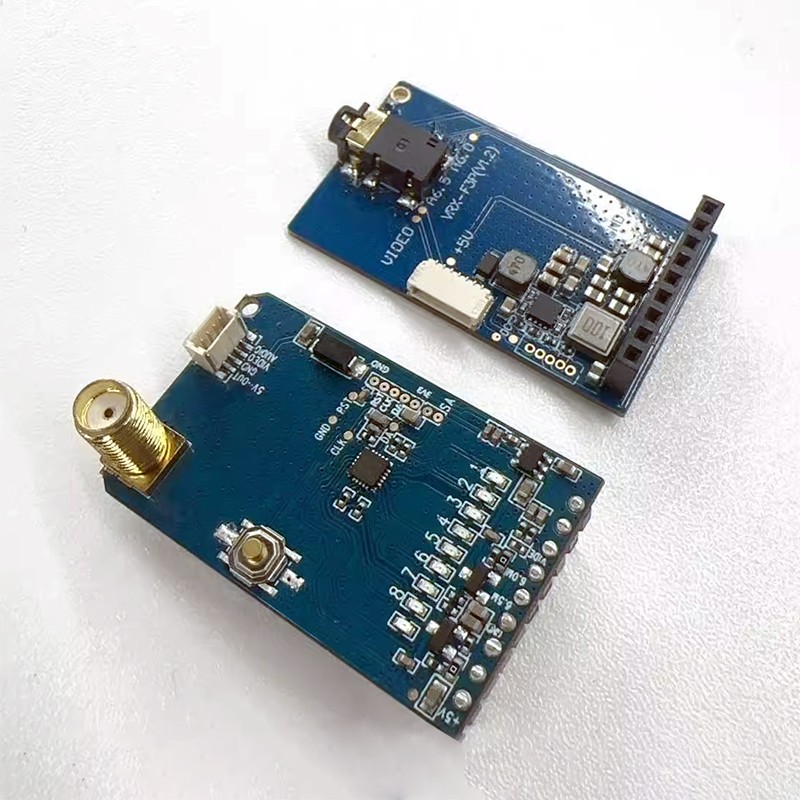

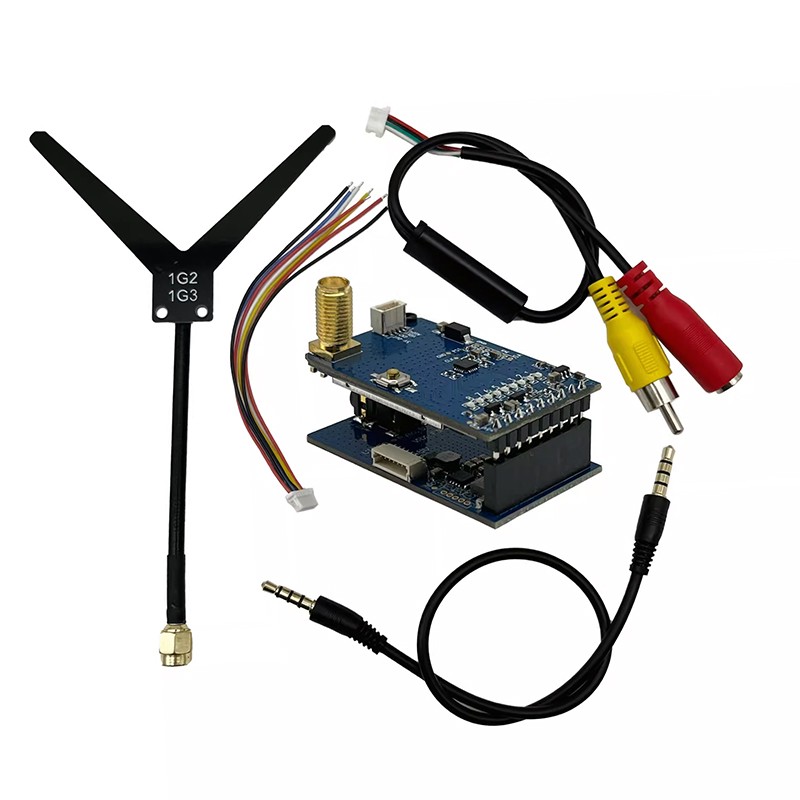

FLYTO 1.2G/1.3G Video Transmitter Receiver with Sound Function, Paired with FPV Goggles, Old - style SM1370R Module

Main Features

Channels: 8CH

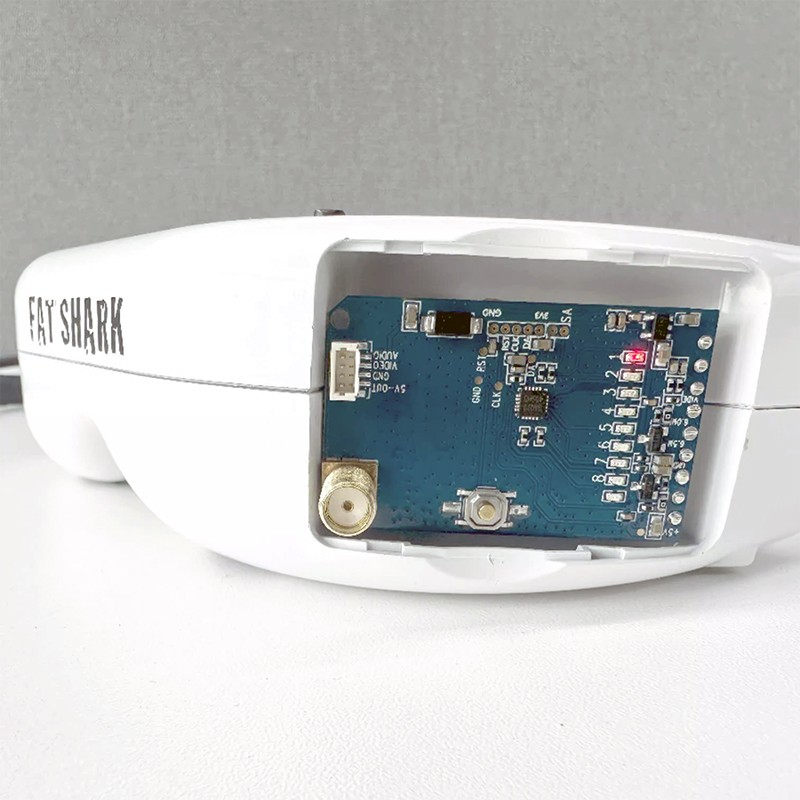

Supports direct connection with VR helmet displays of FatShark,

Skyzone and other brands, as well as connection with analog monitors. High - sensitivity reception: -97dBm.

Efficient DC/DC power supply, supporting 7 - 36V input.

Supports 5V voltage output.

Touch switch for quick channel switching.

Supports sound function.

Product Parameters

Receiver (Ground End):

Input Voltage: 7 - 36V DC (2 - 6S)

Output Voltage: 5V/0.5A

Video Standard: PAL/NTSC

Number of Channels: 8 channels

Channel Selection: Short - press to switch frequency points

Reception Frequency: 1120 - 1360MHZ

Sensitivity: -97dBm (MAX)

Antenna Interface: SMA (External Thread, Inner Hole)

Modulation Type: FM

Transmitter Operation and Adjustment Section:

Frequency Point TableCH1: 1120, CH2: 1160, CH3: 1200, CH4: 1240, CH5: 1258, CH6: 1280, CH7: 1320, CH8: 1360

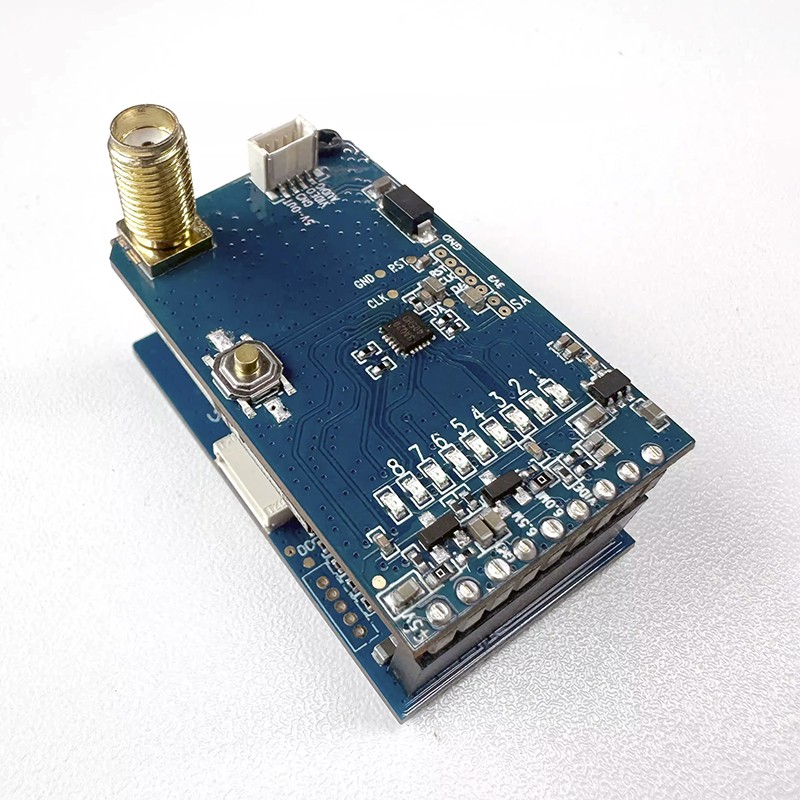

One button is used to adjust the channel. Short - press to change the channel,

as shown in the figure below.Channel Control: Short - press to switch channels

Channel: CH1 1120, CH2 1160, CH3 1200, CH4 1240, CH5 1258, CH6 1280, CH7 1320, CH8 1360.

Green indicator light is on constantly: 1 2 3 4 5 6 7 8

Precautions

Install the antenna before powering on to avoid equipment failure.

Select an appropriate operating frequency and set the transmitter and receiver to the same frequency.

...

For more details please contact us.
