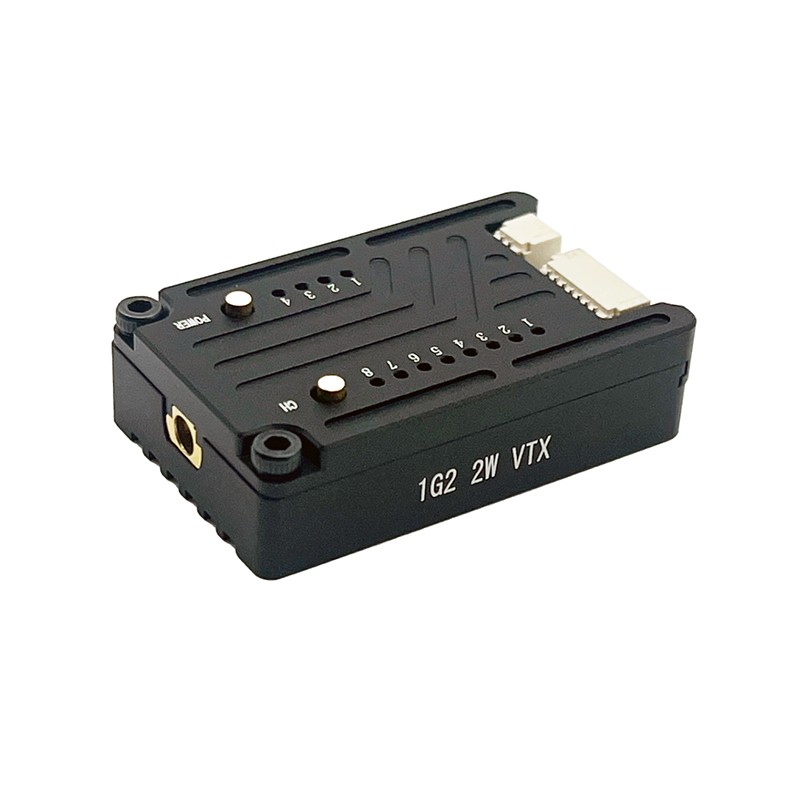

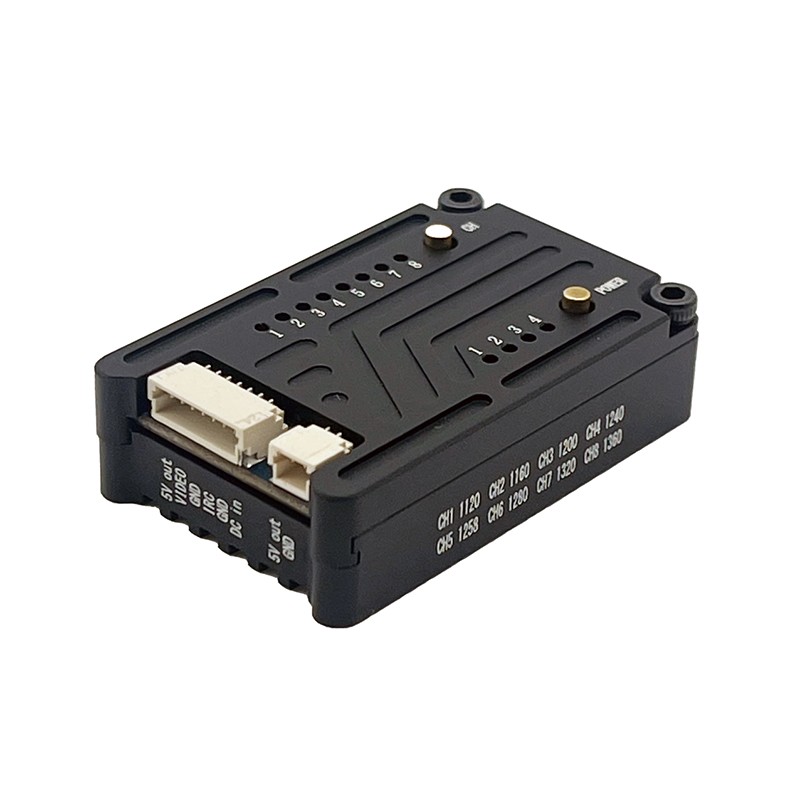

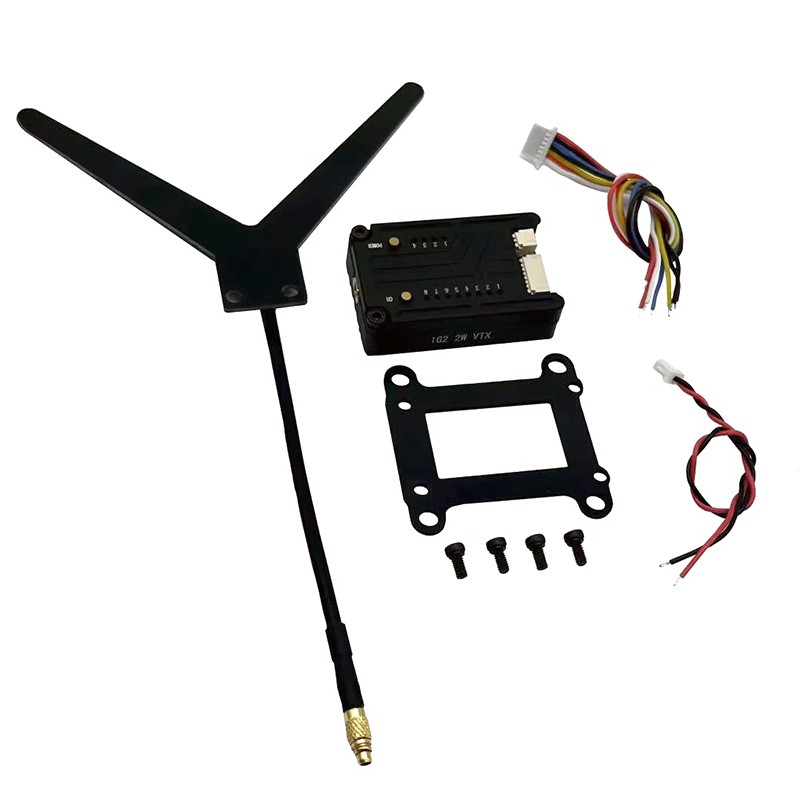

FLYTO 1.2G 1.3G 2W VTX Long-Range FPV Video Transmitter with Flight Stack Mounting Bracket

Main Features:

Channels: 8CH

Control Protocol: IRC Tramp, supports OSD tuning

Power: PIT 25mW, 200mW, 2000mW

Efficient DC/DC power supply: Supports 7-36V

High-strength aluminum alloy CNC housing: Enhanced heat dissipation for stable power transmission

Supports external audio input

Supports 5V output voltage

Supports 30.5 x 30.5mm (M3 mounting holes) for mounting to a Fat Shark system

Product Parameters:

Transmitter (Sky End):

Input Voltage: 7-36V DC (2-6S)

Output Voltage: 5V/0.5A

Weight: 15.6g (including housing, excluding antenna)

Dimensions (L x W x H): 38mm x 24mm x 11mm

Video Standard: PAL/NTSC

Channels: 8 channels

Channel Selection: Frequency point adjustment button (short press to switch channels)

Transmission Frequency: 8CH, refer to frequency table

Transmission Power: 33dBm±1dBm (MAX)

Power Adjustment: Power adjustment button, short press to switch

Power Levels: Four options: 25mW, 200mW, 2000mW

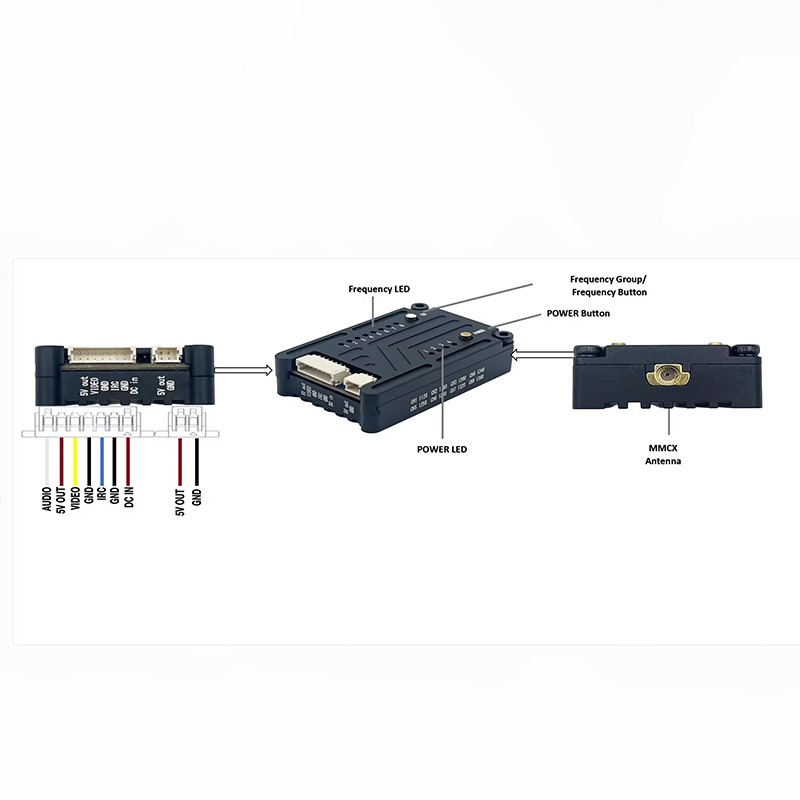

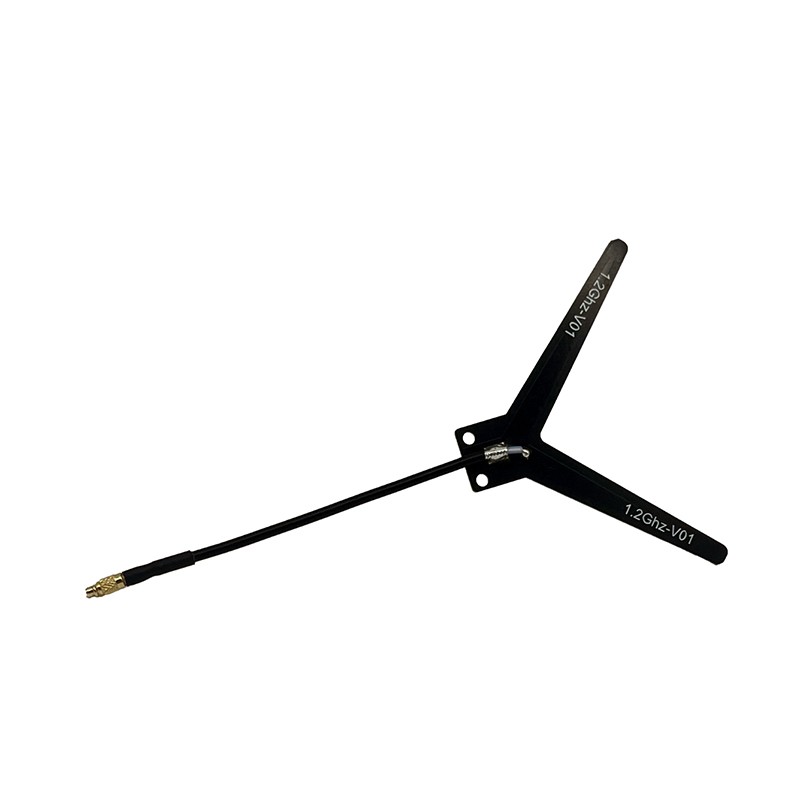

Antenna Interface: MMCX

Modulation Type: FM

Frequency table
