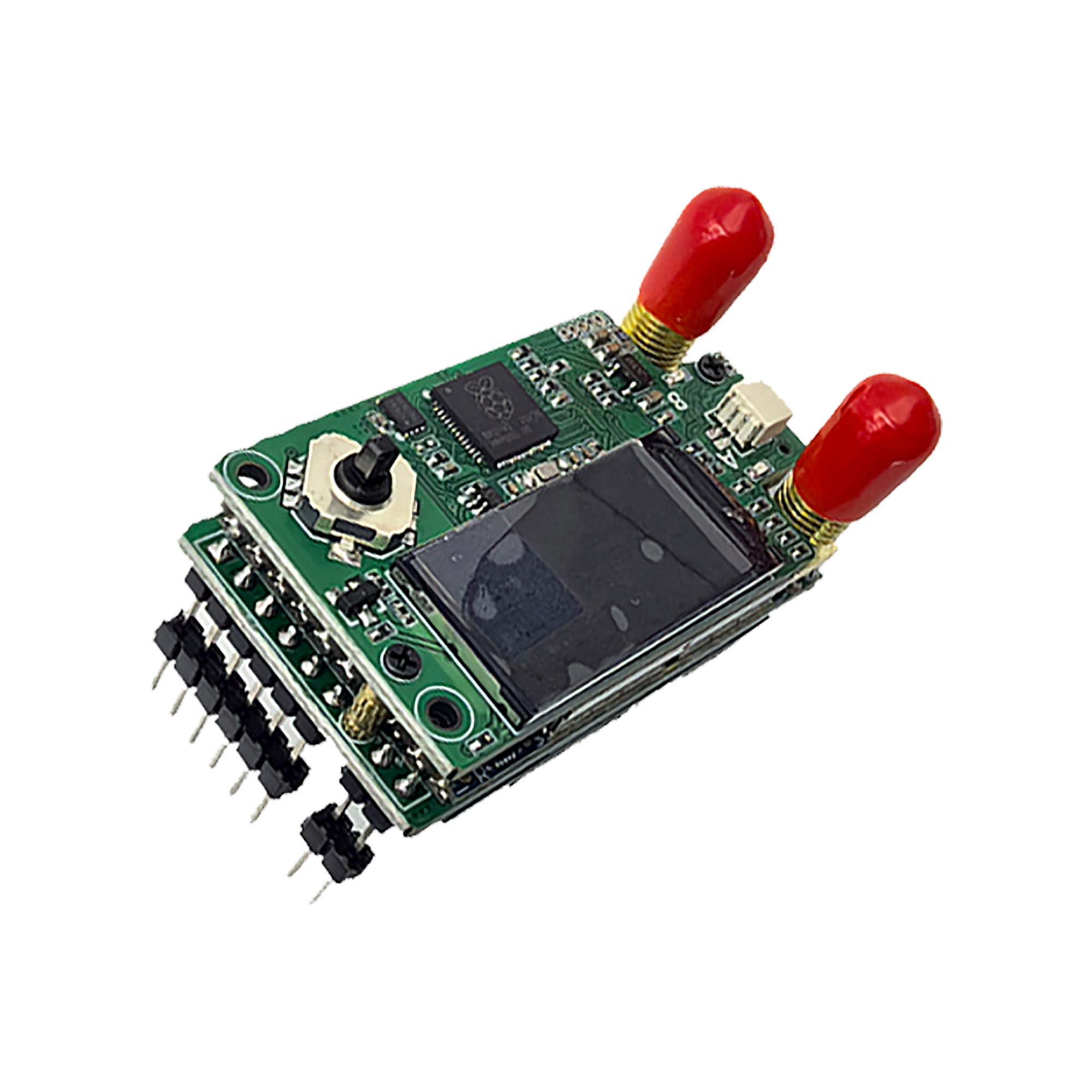

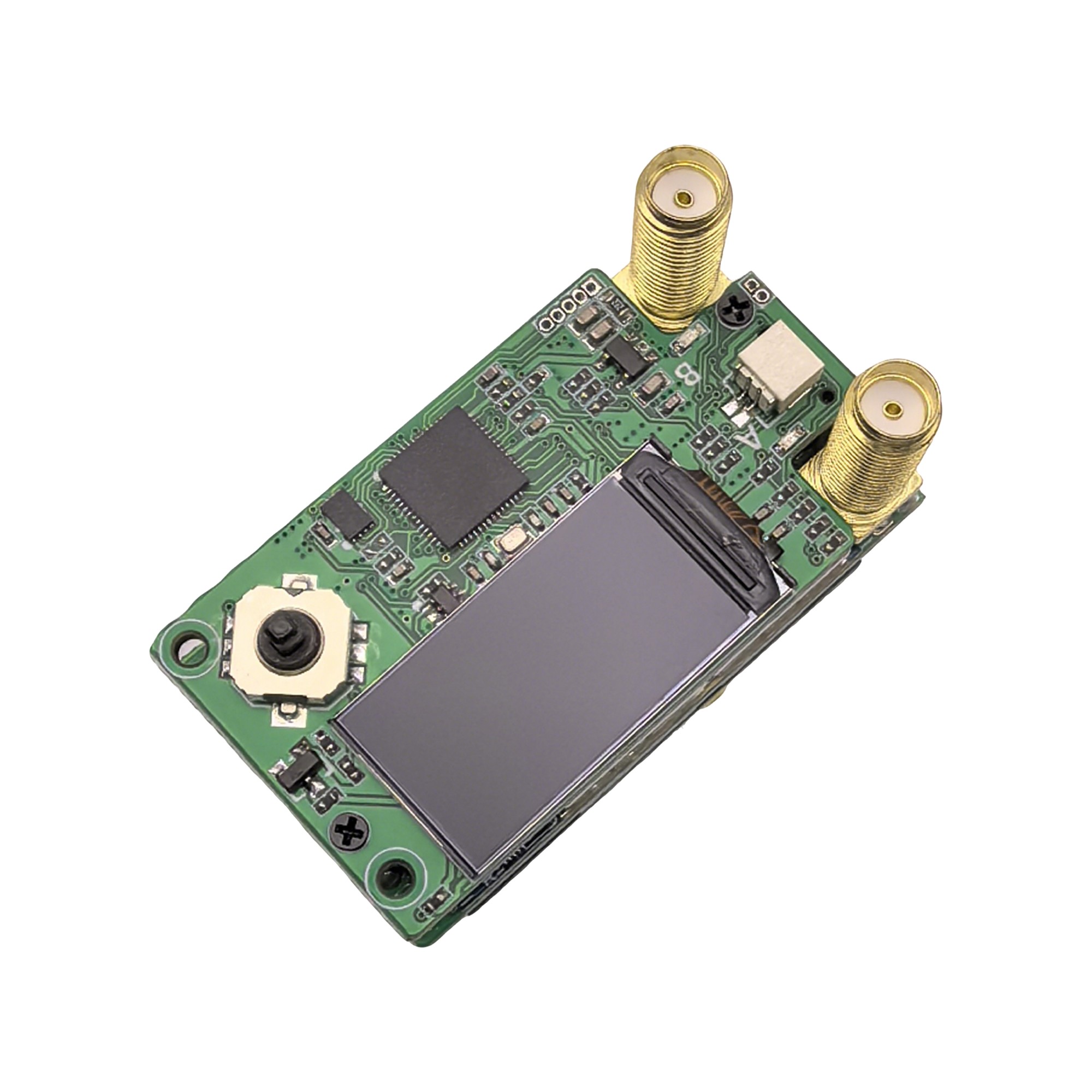

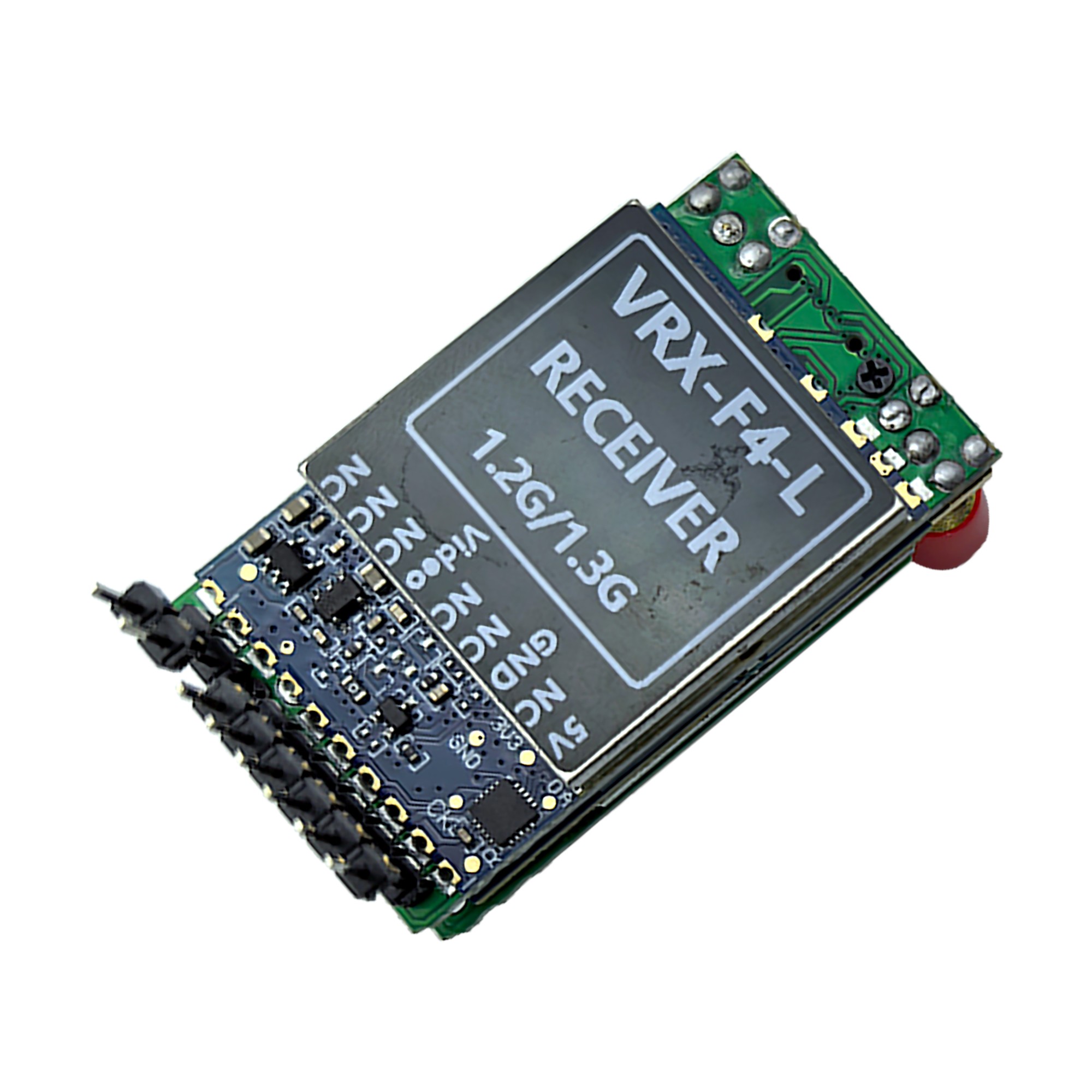

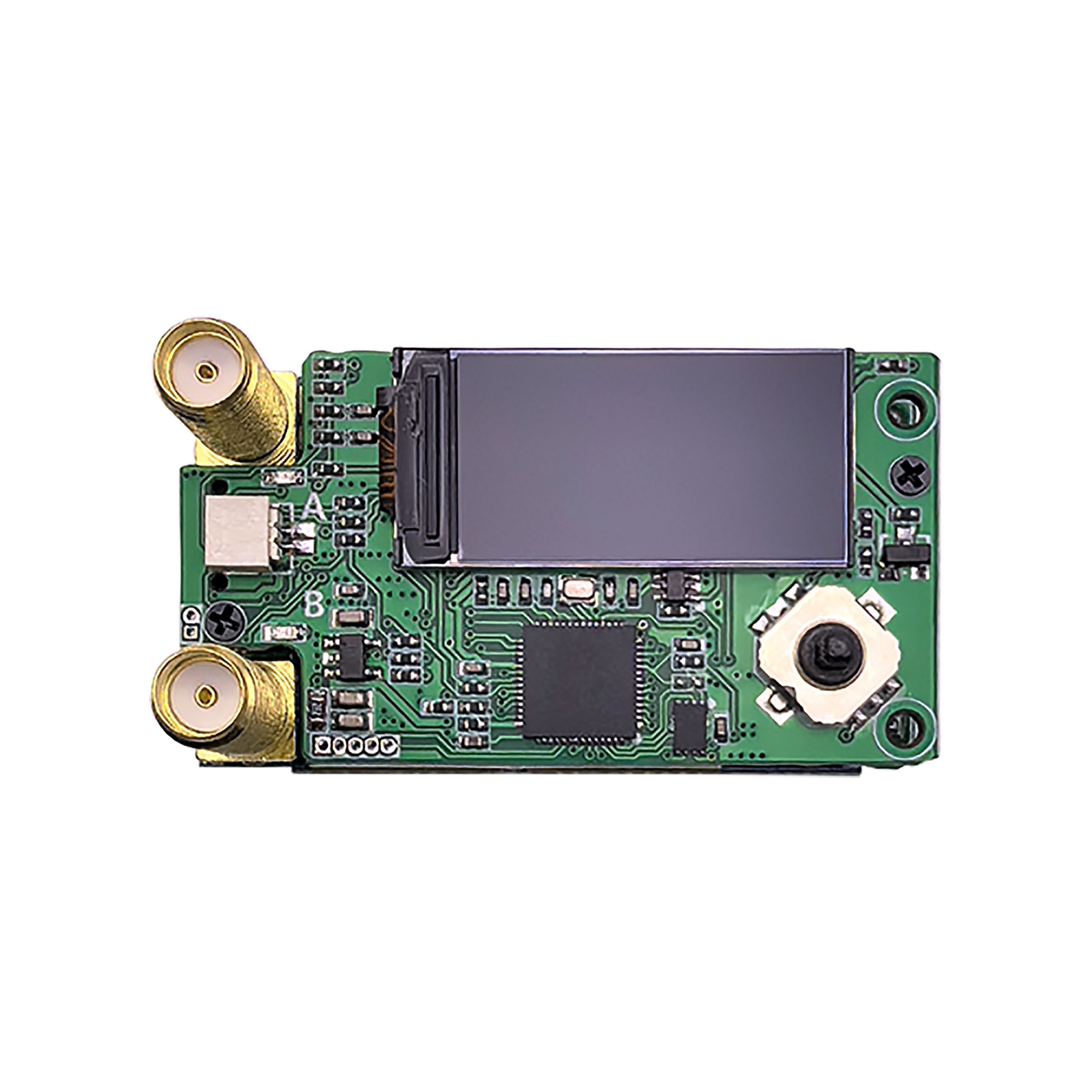

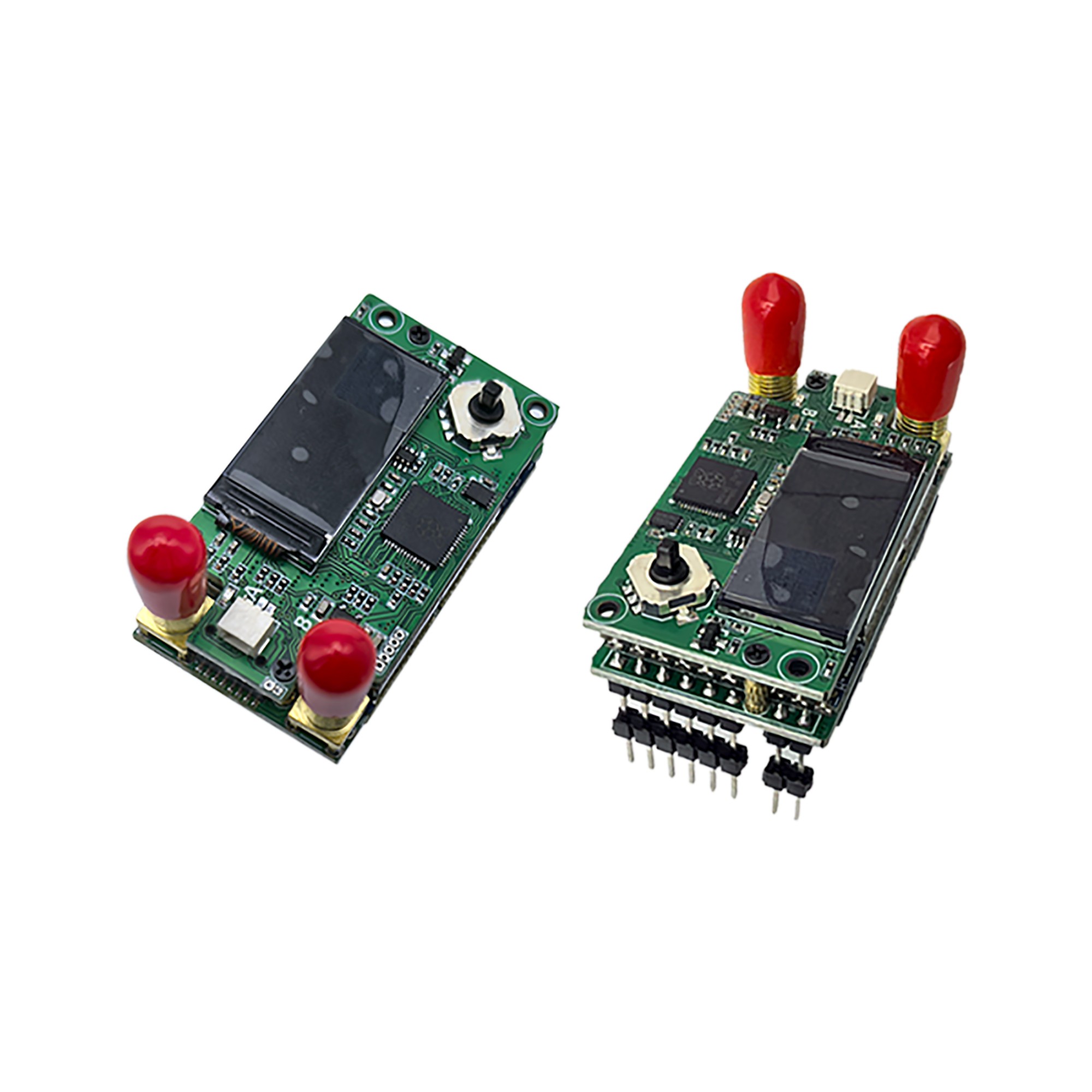

FLYTO New 1.2G/1.3G Dual Receiver Video Transmission for Direct Plug-in into FatShark and Skyzone Goggles

1.2/1.3 GHz Receiver VRX Video Receiver 9CH Wideband (1080 MHz to 1360 MHz), Compatible with Fatshark Goggles, SKYZONE Goggles, DJI Goggles V1 and V2

Specifications:

9 Channels

CH1: 1080 MHz

CH2: 1120 MHz

CH3: 1160 MHz

CH4: 1200 MHz

CH5: 1240 MHz

CH6: 1280 MHz

CH7: 1320 MHz

CH8: 1360 MHz

CH9: 1258 MHz

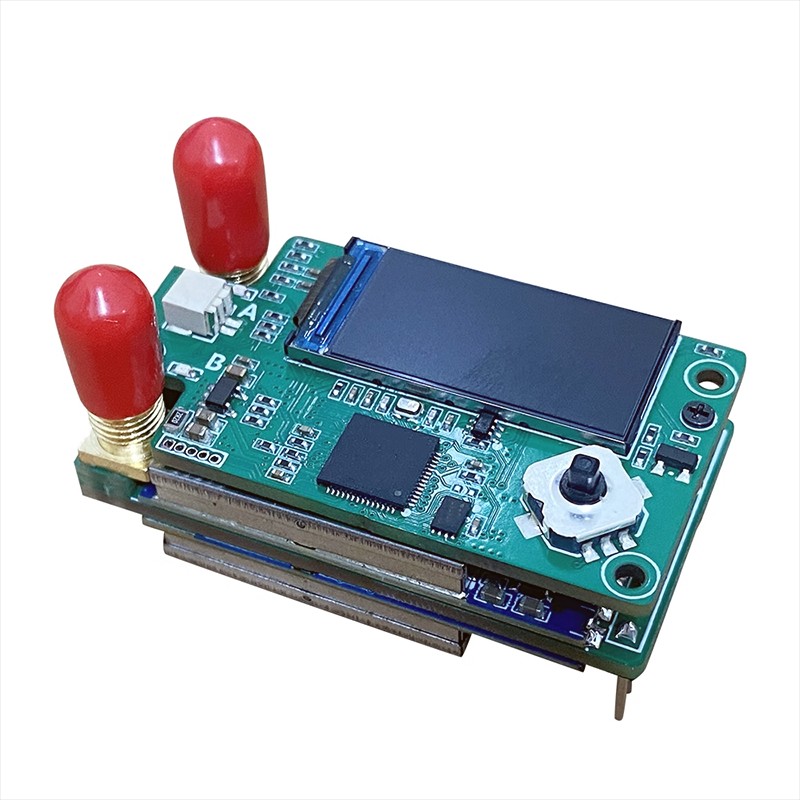

Button control with 0.96" TFT LCD display

5V 1A DC input

RF connector: SMA

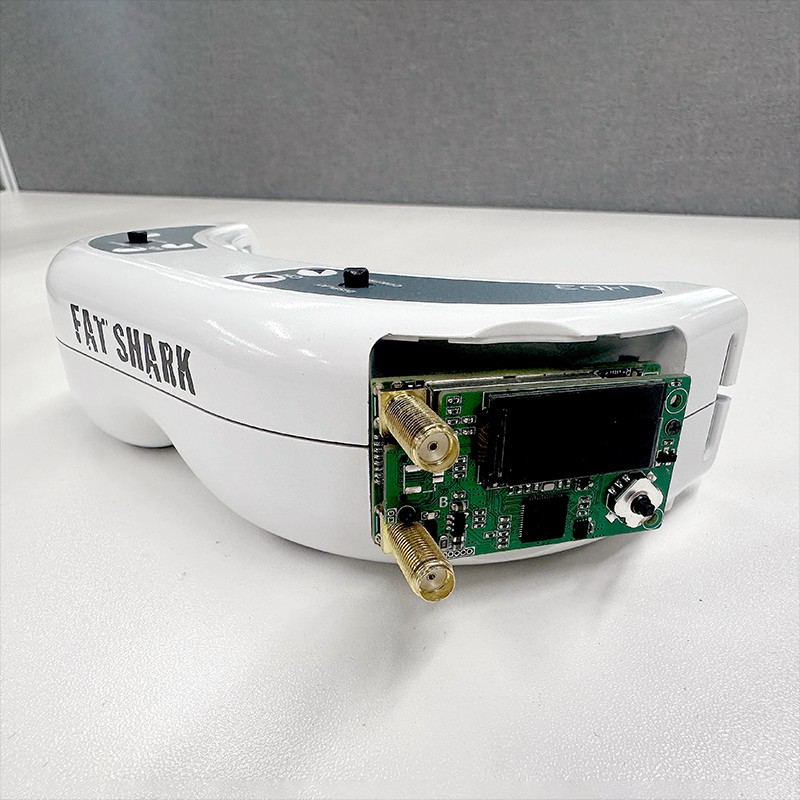

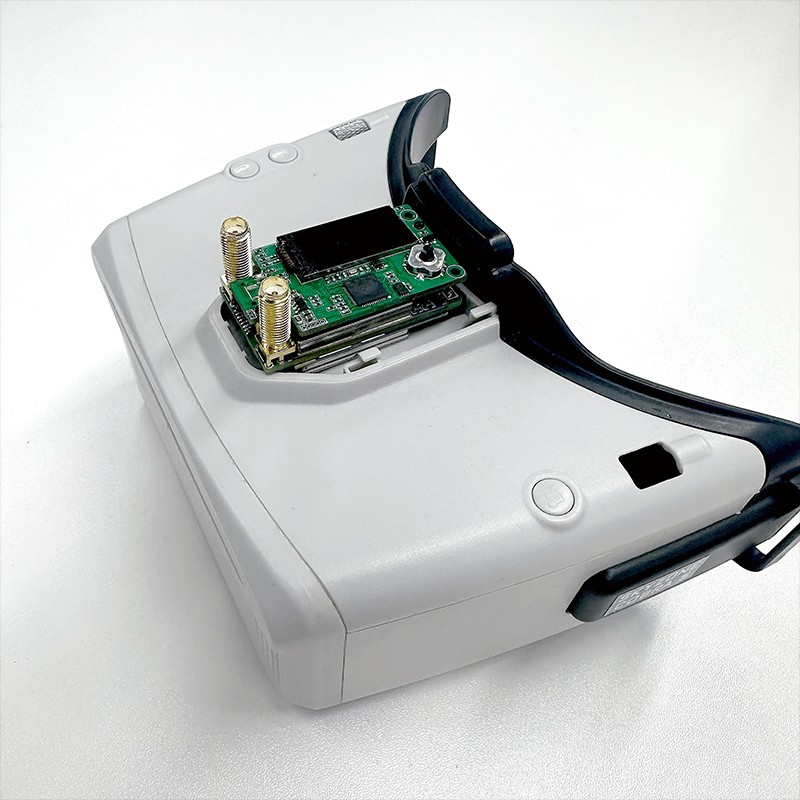

Compatible with Fatshark Goggles, SKYZONE Goggles, DJI Goggles V1 and V2 (requires use with 5.8G RX PORT module)

Weight: 18.5 grams (excluding antenna)

Dimensions: 47 x 26 mm

Settings:

Manual Mode: Increase frequency by turning up, decrease frequency by turning down, press vertically down to enter the menu.

Auto Search: Press vertically down to enter the submenu - Mode 1, Mode 2 (switch modes by turning up or down, press vertically down to confirm), press left or right to return to the previous menu.

RSSI: Press vertically down to enter the submenu - RSSI calibration, RSSI output - OFF. Turn up or down to toggle.If "RSSI Calibration" is selected, press vertically down to enter the RSSI calibration submenu, then press vertically down to start calibration.

If "RSSI Output - OFF" is selected, press vertically down to enter the RSSI output or OFF submenu, toggle up and down, then press vertically down to confirm.

Press left or right to return to the previous menu.

Receiver Mode Settings: Auto mode. Switch between Receiver 1 and Receiver 2 by turning up or down.Press left or right to return to the previous menu.

Save and Exit: Press vertically down to return to the frequency and RSSI display interface. Press "Save and Exit" to apply the changes. Turning off the power will save the last manually or automatically adjusted frequency.

Package Includes:

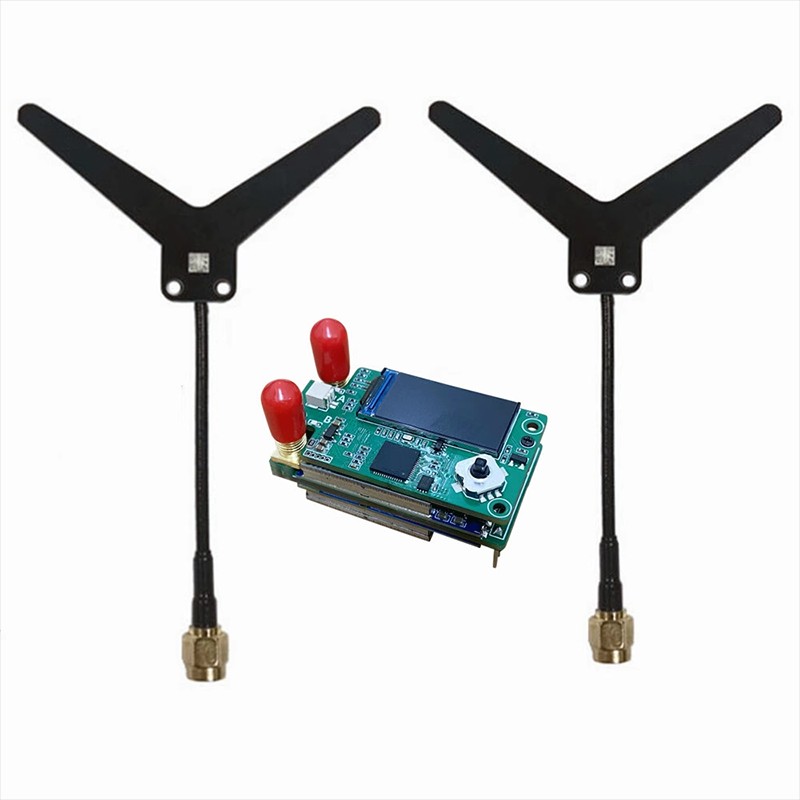

1 x 1.2/1.3 GHz Dual Antenna Video Receiver

2 x Dipole Antennas SMA
