FLYTO New 4.9G 5.8G 6G 3W VTX High - power Long - range FPV Video Transmitter for Flight Stack Installation

Main Features

Channels: 72CH

Control Protocol: IRC Tramp, supports OSD parameter adjustment

Power Levels: PIT 25mW, 400mW, 800mW, 3000mW

Power Supply: High - efficiency DC/DC power supply, supports 7 - 36V.

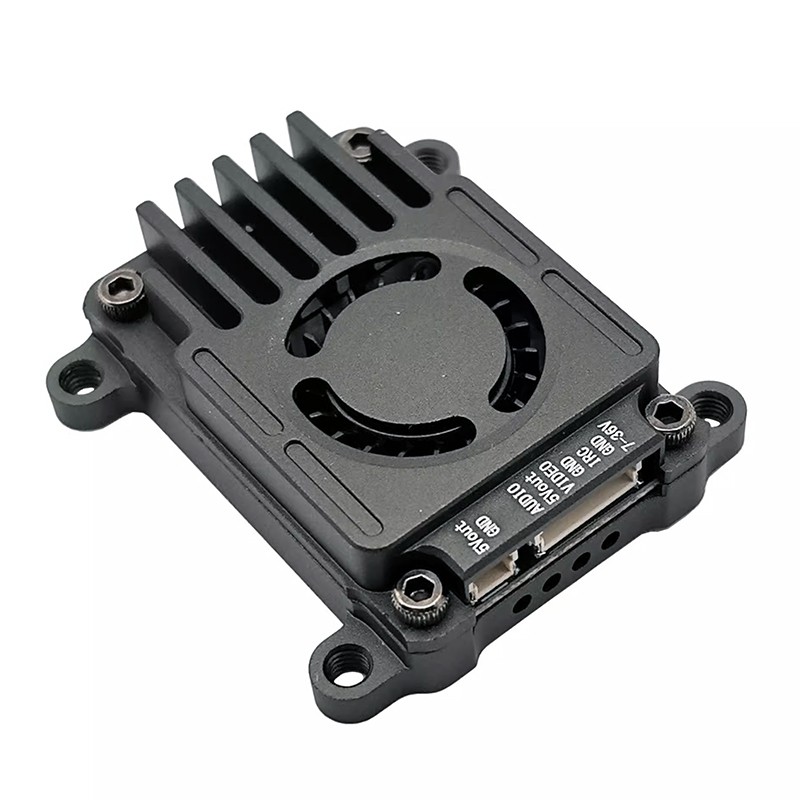

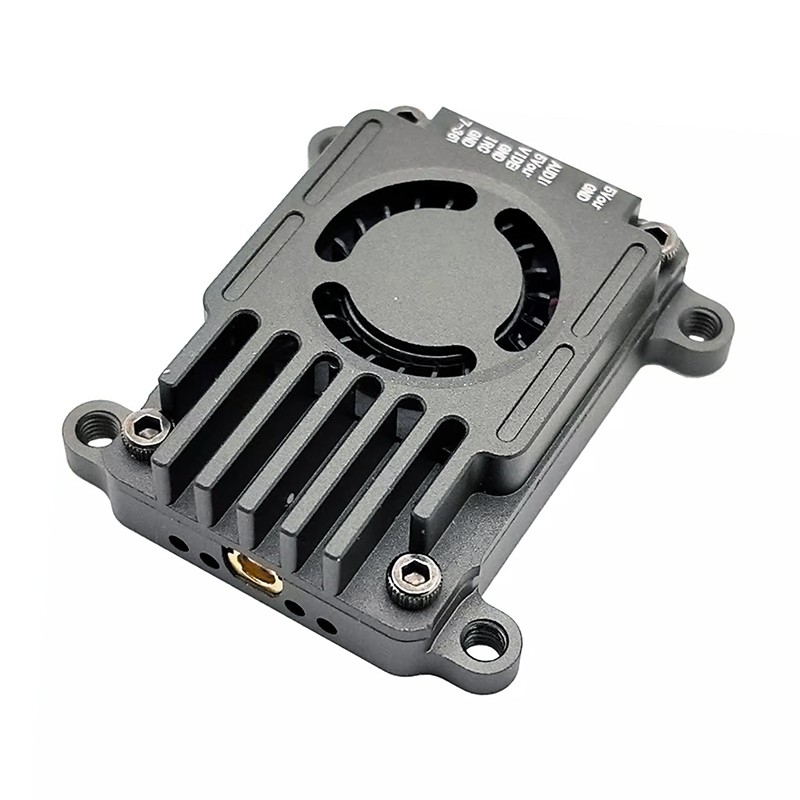

The selected high - strength aluminum alloy CNC shell with a built - in micro - turbine fan

for active heat dissipation enhances stable power transmission.

The transmitter has a built - in temperature control protection function to prevent

overheating during long - term ground parameter adjustment.

Audio Input: Supports external audio input

Voltage Output: Supports 5V voltage output

Installation: Supports flight stack installation with 30.5X30.5MM spacing and self - contained M3 threaded holes

Product Parameters

Transmitter (Air - end):Input Voltage: 7 - 36V DC (2 - 6S)

Output Voltage: 5V/0.5A

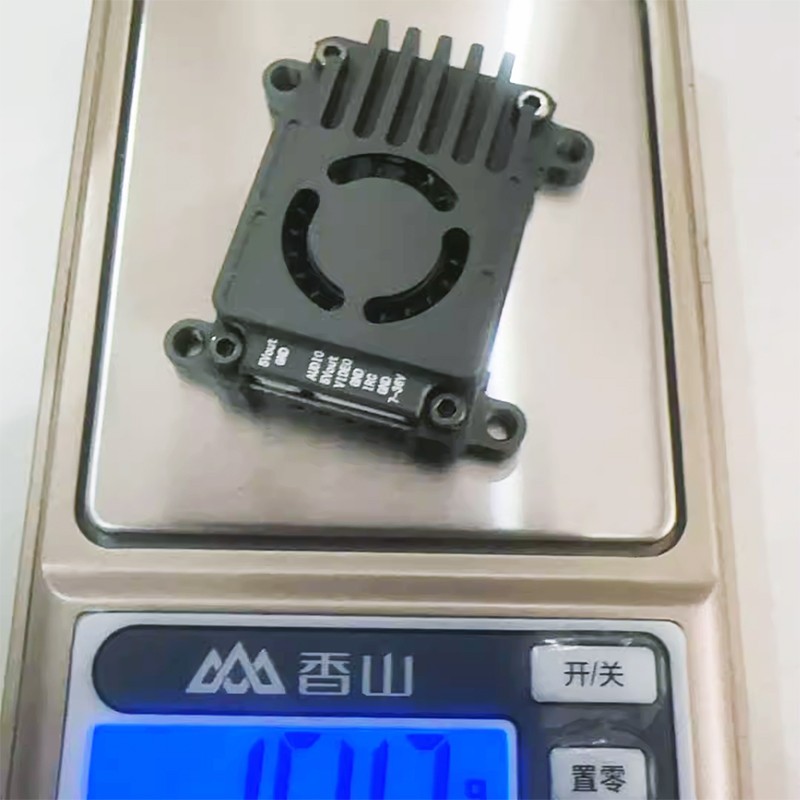

Weight: 15.6g (including the shell, excluding the antenna)

Dimensions (Length × Width × Height): 38.535.510.76mm

Video Standard: PAL/NTSC

Transmission Frequency: 72CH, see the frequency table for details

Channel Selection: Band/frequency adjustment button: Long - press for 3 seconds to switch bands,

short - press to switch frequencies

Transmission Power: 34dBm + 1dBm (MAX)

Power Adjustment: Power adjustment button, short - press to switch

Power Levels: Four levels, 25mW, 400mW, 800mW, 3000mW

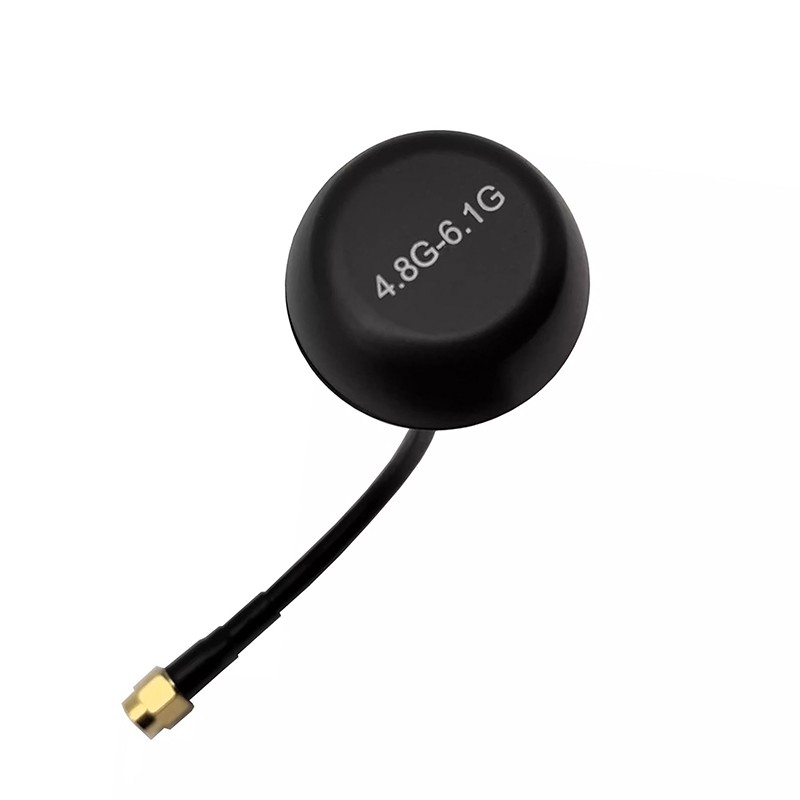

Antenna Interface: MMCX

Modulation Type: FM

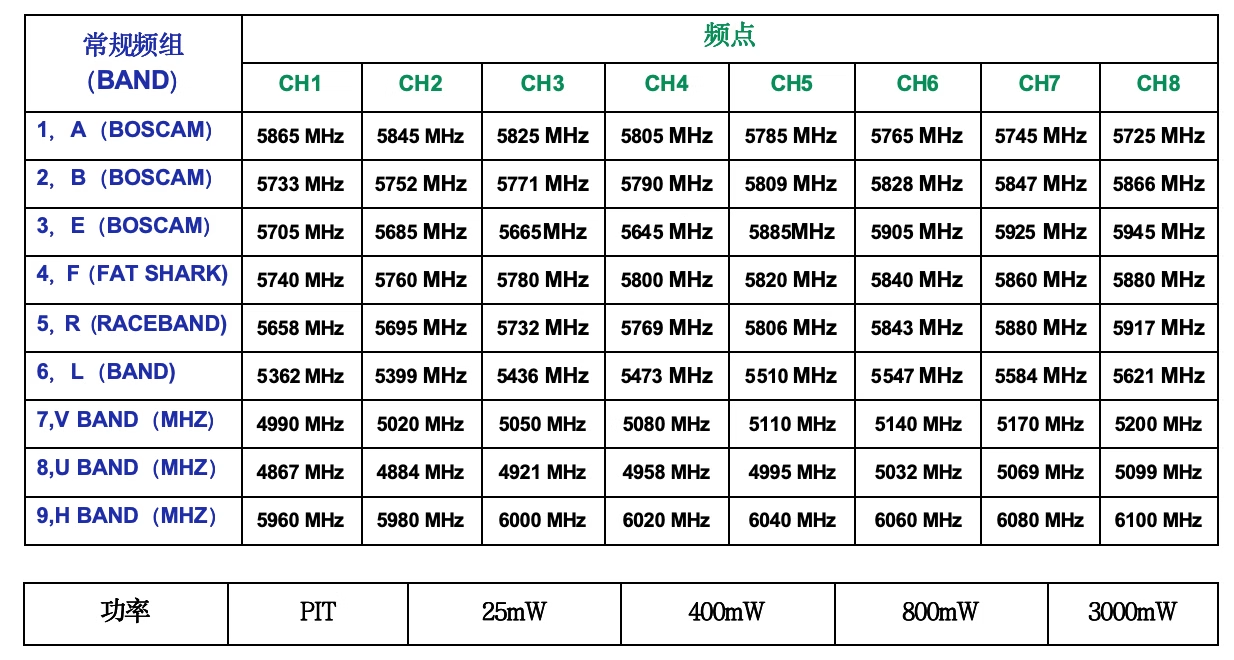

Frequency Table:
