FLYTO 4.9G 5.8G 6G 3W VTX High-Power Long-Range FPV Video Transmitter DIY Accessory

Main Features

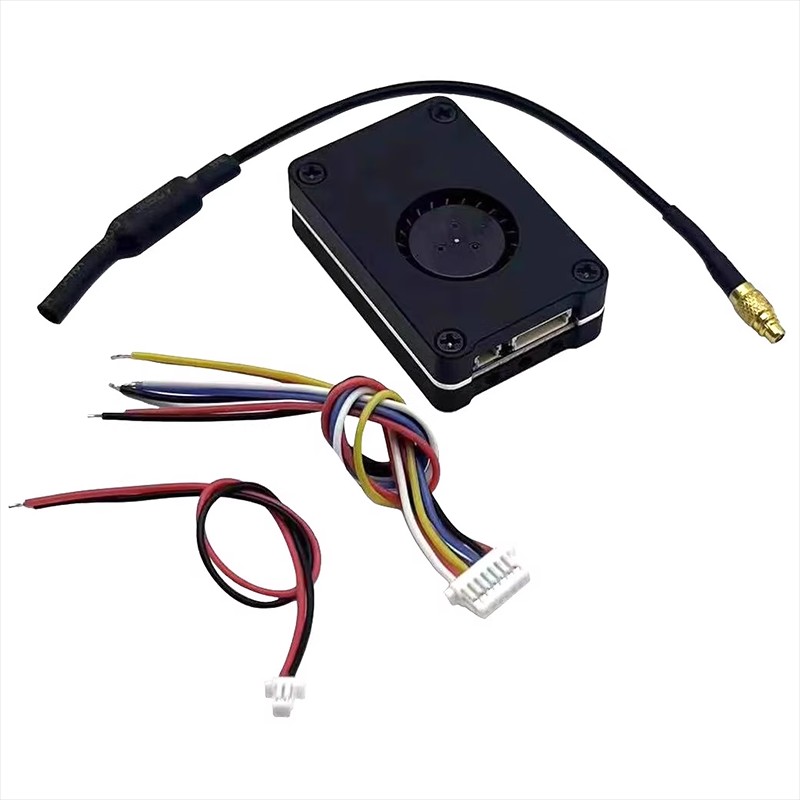

Standard Configuration: Equipped with a copper tube antenna

Channels: 48CH

Control Protocol: IRC Tramp, supports OSD parameter adjustment

Power: PIT 25mW/400mW/800mW/3000mW

Efficient DC/DC power supply supports 7-36V

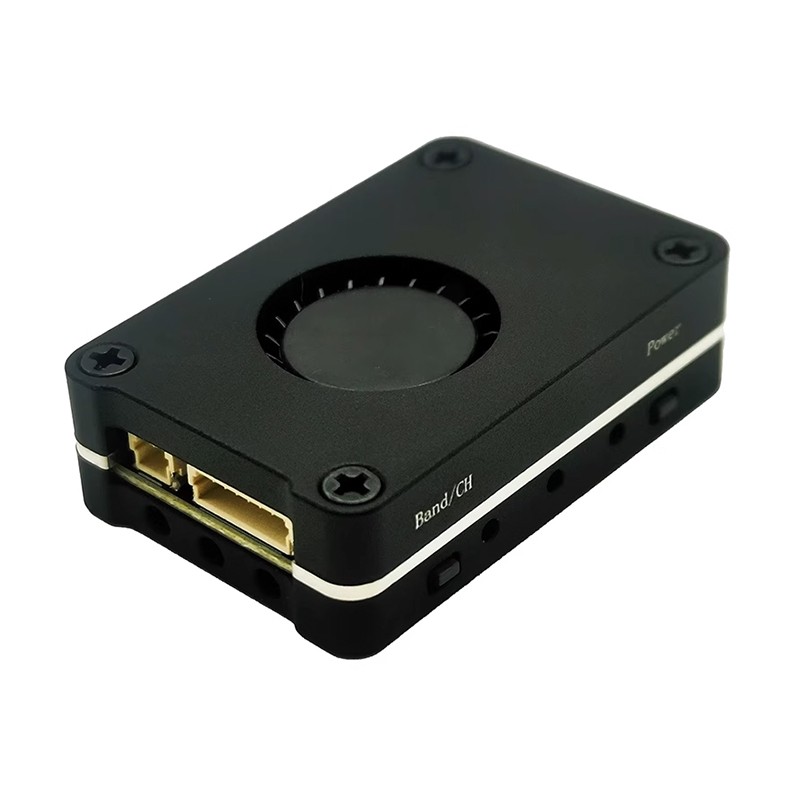

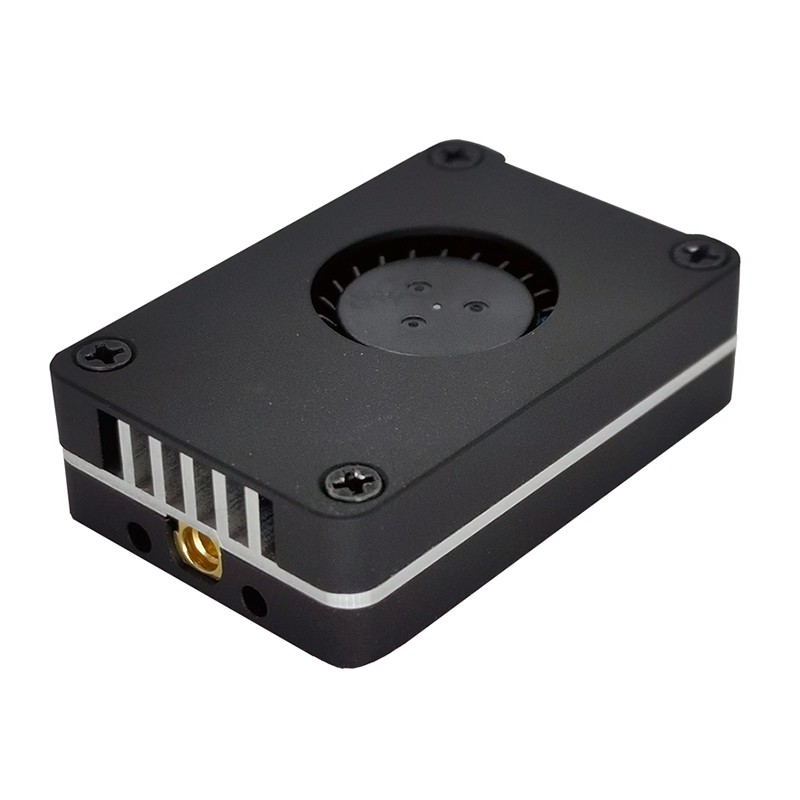

High-strength aluminum alloy CNC housing with built-in micro turbo fan for active cooling to enhance power stability and transmission

Transmitter features temperature control protection to prevent overheating during prolonged ground parameter adjustment

Supports external audio input

Supports 5V voltage output

Product Specifications

Transmitter (Air End):

Input Voltage: 7-36V DC (2-6S)

Output Voltage: 5V/0.5A

Weight: 15.6g (including housing, excluding antenna)

Dimensions (LxWxH): 38.72611MM

Video System: PAL/NTSC

Transmission Frequency: 48CH, details in the manual

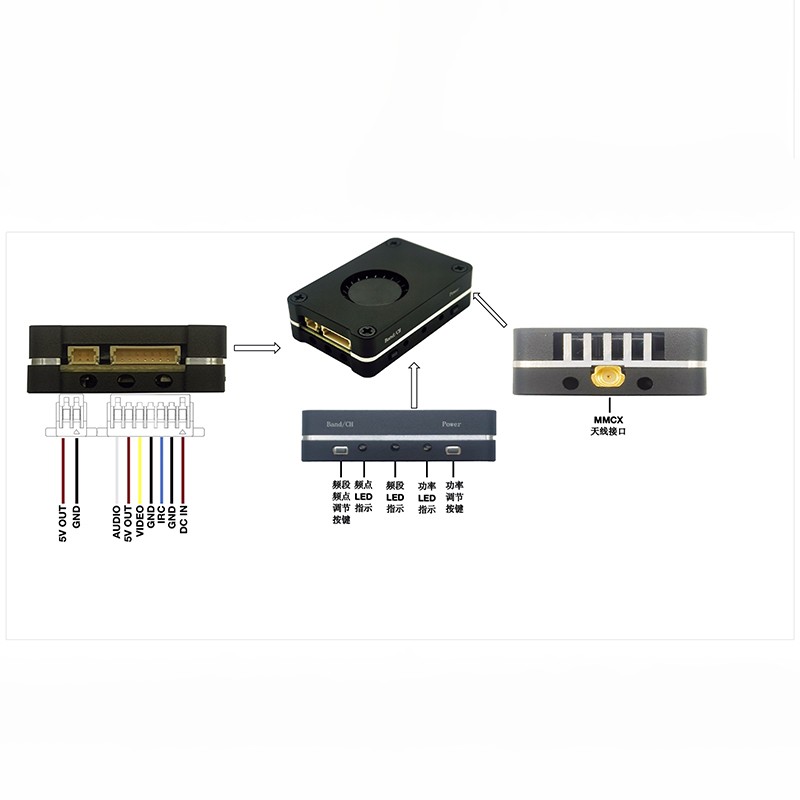

Channel Selection: Band/Channel adjustment button: long press for 3 seconds to switch bands, short press to switch channels

Transmission Power: 34dBm+1dBm (MAX)

Power Adjustment: Power adjustment button, short press to switch

Power Levels: Four
