FLYTO 4.9G 5.8G 6G 1.6W VTX Long-Range FPV Video Transmitter for Drone DIY Accessories

Main Features

Channels: 48CH + 24CH

Control Protocol: IRC Tramp, supports OSD parameter adjustment

Power: PIT 25mW, 400mW, 800mW, 1600mW

Efficient DC/DC power supply supports 7-36V

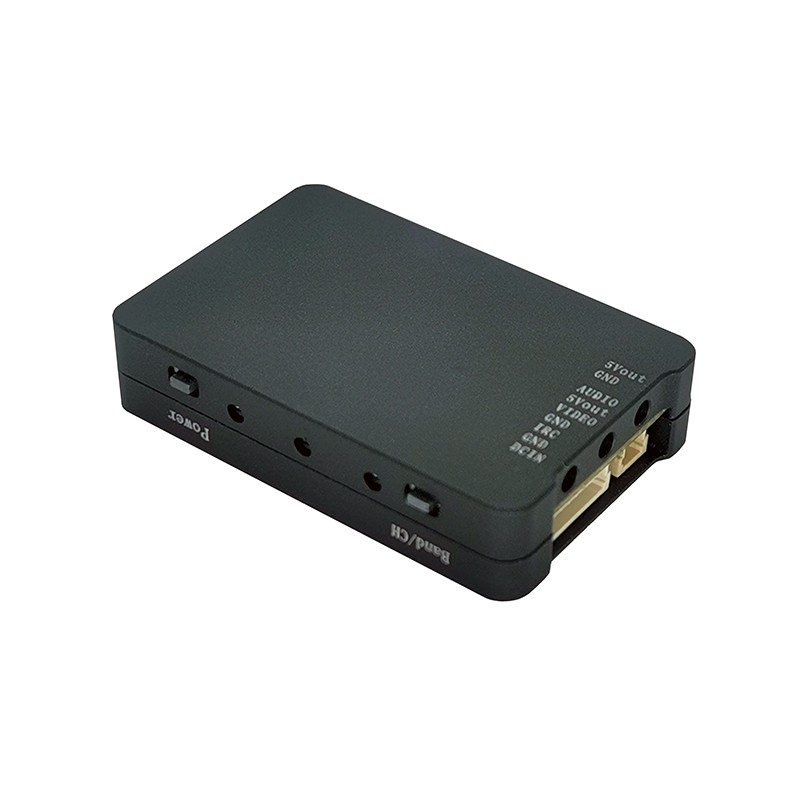

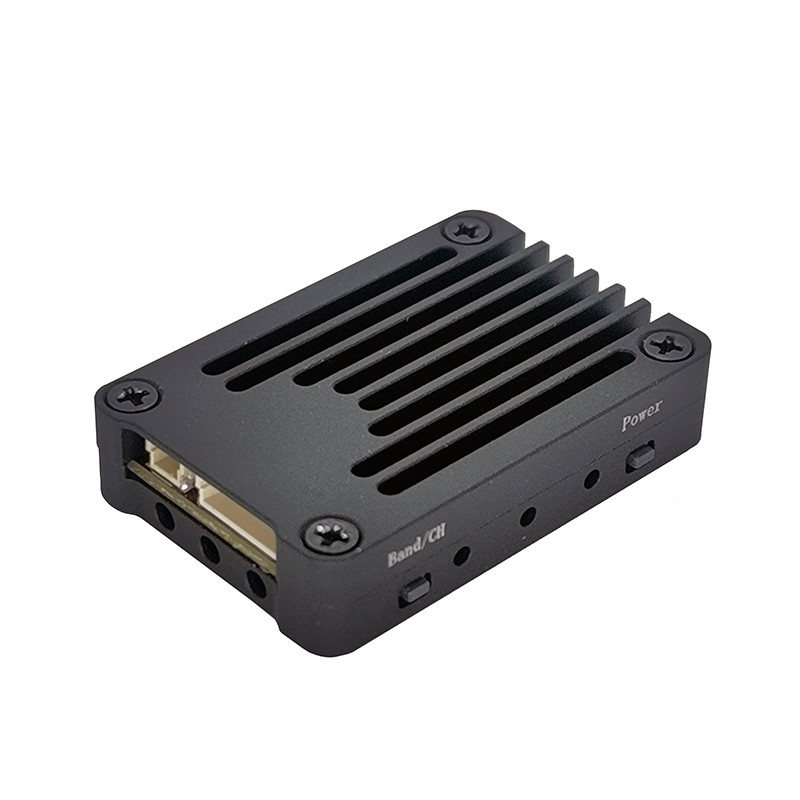

High-strength aluminum alloy CNC housing for enhanced heat dissipation and stable power transmission

Transmitter features built-in temperature control protection to prevent overheating during prolonged ground parameter adjustment

Supports external audio input

Supports 5V voltage output

Product Specifications

Transmitter (Air End):

Input Voltage: 7-36V DC (2-6S)

Output Voltage: 5V/0.5A

Weight: 10g (including housing, excluding antenna)

Dimensions (L x W x H): 38.7 x 26 x 8.5 mm

Video System: PAL/NTSC

Transmission Frequency: 48CH + 24CH (see frequency table for details)

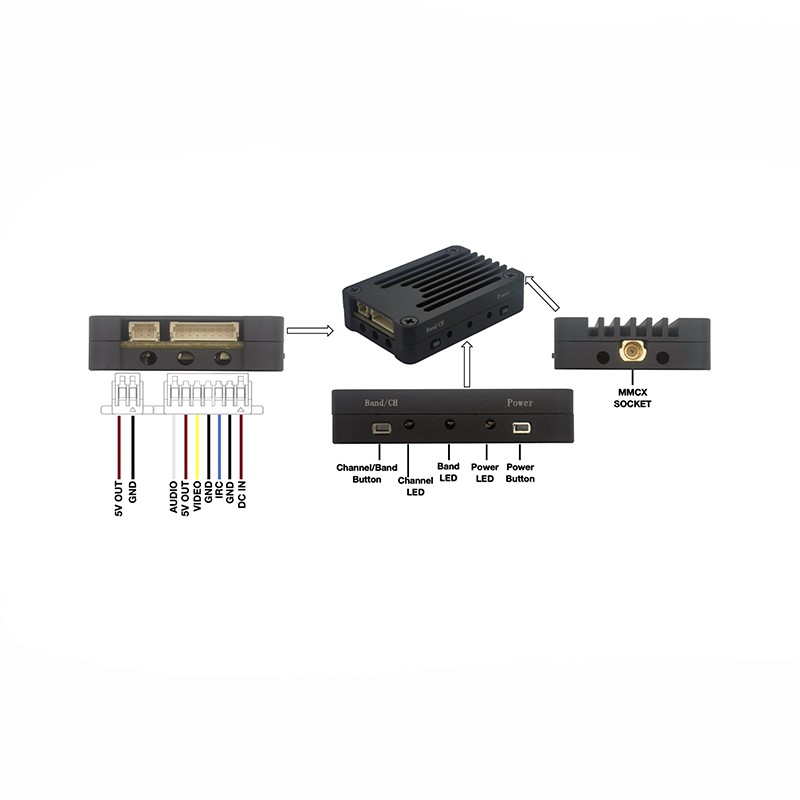

Switching between standard frequency group (48CH) and extended frequency group (24CH): Simultaneously press and hold the Power button and Band/CH button for more than 5 seconds

Channel Selection: Band/Channel adjustment button: Long press for 3 seconds to switch bands, short press to switch channels

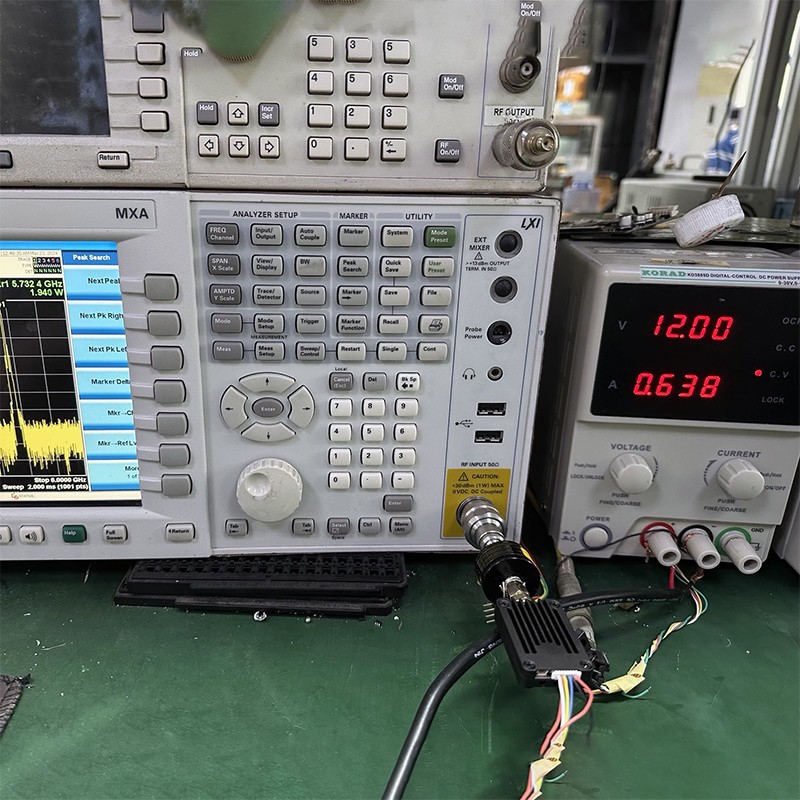

Transmission Power: 32dBm + 1dBm (MAX)

Power Adjustment: Power adjustment button, short press to switch

Power Levels: Four levels (25mW, 400mW, 800mW, 1600mW)

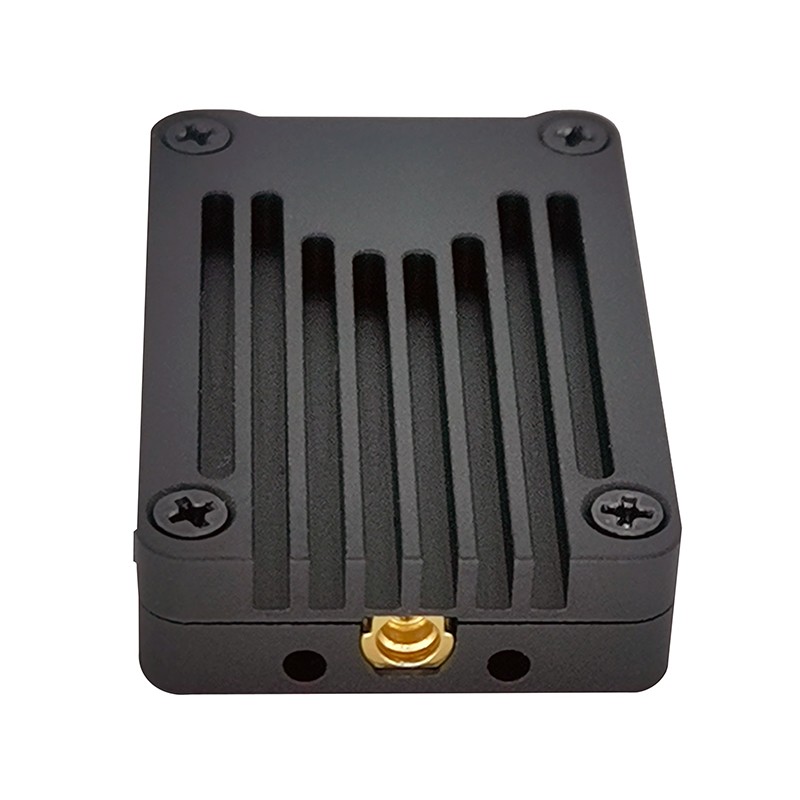

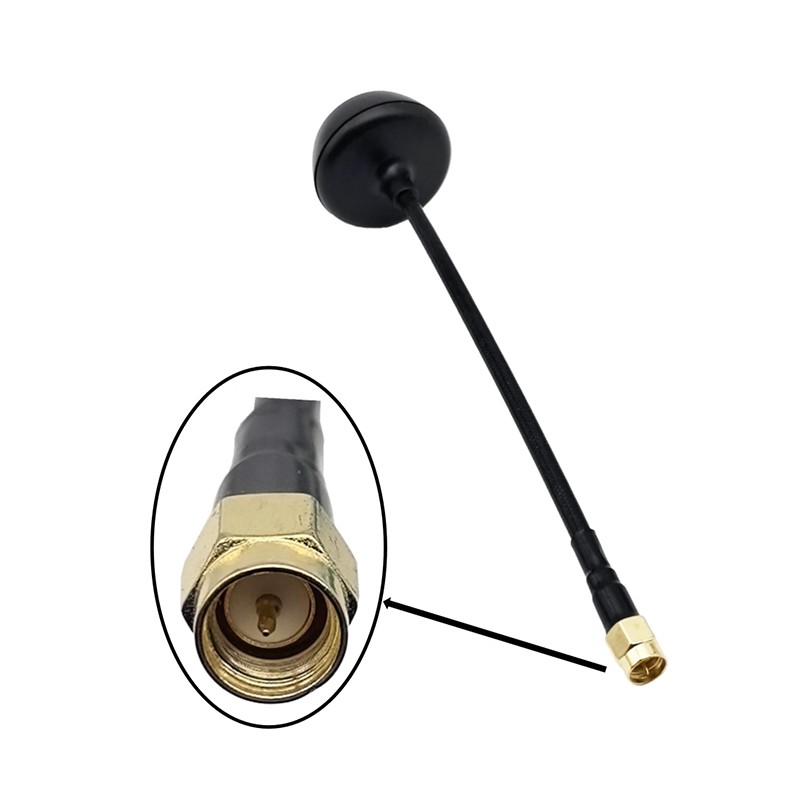

Antenna Interface: MMCX

Modulation Type: FM

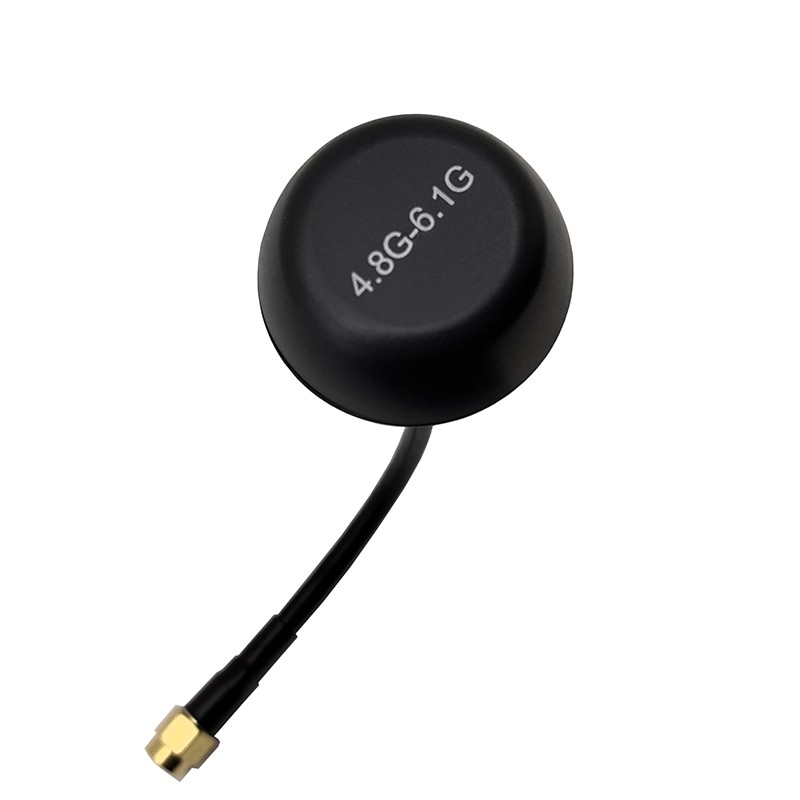

Note: When using the 4.9G frequency group, please replace the antenna with a 4.9G band antenna. Failure to do so may result in module damage due to antenna mismatch.
