FLYTO Digital - to - Analog Module is applicable to the base bin of 1.2G/1.3G/5.8G video transmission dual receivers.

Introduction

The digital video transmission system and visual experience of

DJI FPV goggles represent an evolution in the FPV industry.

Meanwhile, the analog FPV system, represented by FatShark, still has a large market base and user volume.

The design of the Enjoy 1.2G/1.3G/5.8G RX PORT 3.0 is to be fixed on the side of DJI FPV goggles

via the screw on the head - strap ring of DJI FPV goggles, enabling a completely

non - damaging installation. This allows the use of FatShark or various

third - party FatShark - interface 1.2G/1.3G/5.8G receiver systems, facilitating the transfer of video

and audio signals to the high - quality screen of DJI FPV goggles for viewing or recording.

The compact, lightweight, portable, and multi - functional features of the

Enjoy 1.2G/1.3G/5.8G RX PORT 3.0 will surely be favored by FPV enthusiasts who own both analog

and digital FPV flight equipment.

Specification Parameters

Dimensions: 552812mm

Weight: 13g (excluding the transfer cable)

Power Input: 2S - 4S (DC5.5*2.1)

Internal Voltage: 5V 3A (with solder pads for output)

Power Output: 2S - 4S (DC5.5*2.1)

Signal Input: Standard FatShark receiver port, including third - party receivers such as Reaxacc Furious Rapid Fire, etc.

Signal Output: Standard audio/video, supports external DVR module, with voltage display and low - voltage alarm

Accessories

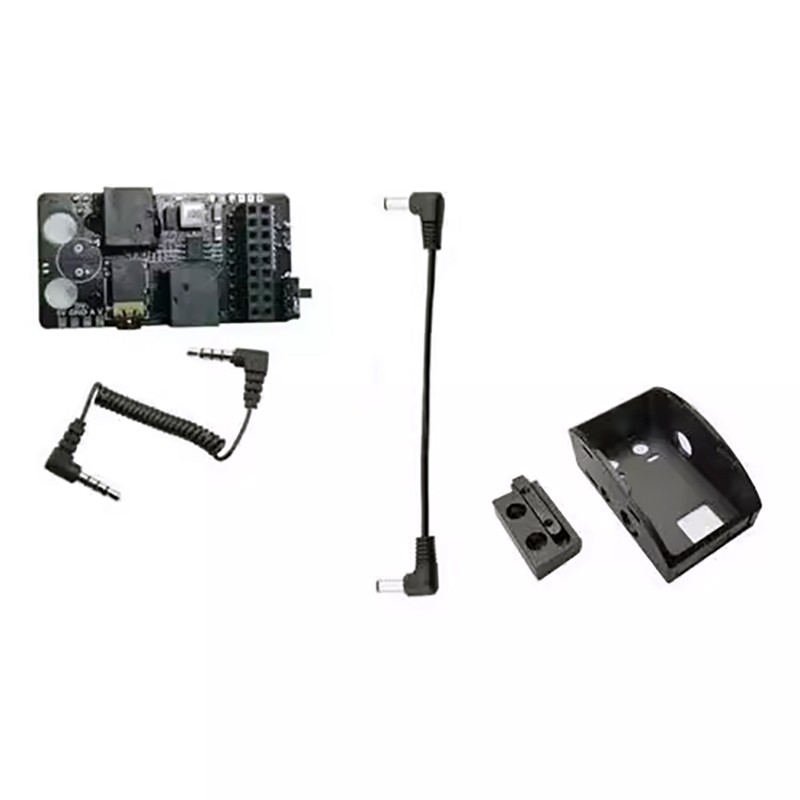

1 set of transfer and installation block and screws

1 audio - video connection cable

1 power connection cable

Latest Updates of the DJI FPV V1/V2 Goggles External 1.2G/1.3G/5.8G Receiver (FATSHARK Series) Module

Added Backpack function interface.

The Enjoy 1.2G/1.3G/5.8G RX PORT 3.0 has added a power switch and a standard

DVR interface (for the video recording module). The DJI FPV goggles version 0200 now

has the DVR video recording function enabled, but it cannot record sound.

We have reserved a standard DVR interface, so customers with such requirements can

connect their own DVR to record both images and sound.

New Features of the Enjoy 1.2G/1.3G/5.8G RX PORT3.0PLUS

Added a digital tu
