FLYTO Newly Upgraded 5.8G/4.9G/6G Video Transmission Dual Receiver, Compatible with FatShark and Skyzone Goggles

Product Specifications

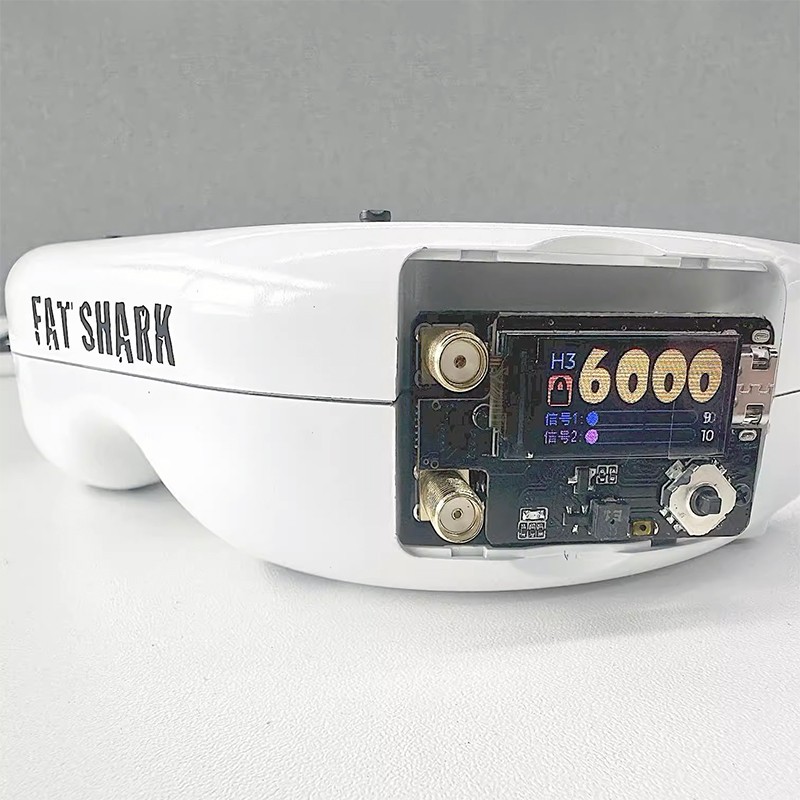

Compatibility: Fatshark Dominator V1, V2, V3, D1, HD2, HD3, HDO, HDO2;

Skyzone 04L, 04X; DJI V1 V2 FPV Goggles (Requires separate purchase of the 5.8G RX PORT module)

Hardware: ESP32 microcontroller + 0.96 - inch TFTLCD + 5 - way button + RF -98dbm receiving module + buzzer

Interface: Bilingual interface based on LVGL

Switch frequencies between 5.3G - 5.9G or 4.9G - 6.1G through the startup animation slider in the settings interface.

Frequencies: 5.3 - 5.9G, 48 frequencies (A, B, E, F, R, L)

{5865,5845,5825,5805,5785,5765,5745,5725}, //A CH1 - 8

{5733,5752,5771,5790,5809,5828,5847,5866}, //B CH1 - 8

{5705,5685,5665,5645,5885,5905,5925,5945}, //E CH1 - 8

{5740,5760,5780,5800,5820,5840,5860,5880}, //F CH1 - 8

{5658,5695,5732,5769,5806,5843,5880,5917}, //R CH1 - 8

{5362,5399,5436,5473,5510,5547,5584,5621} //L CH1 - 8

Frequencies: 4.9G - 6.1G, 22 frequencies (U, H, V)

{4990,5020,5050,5080,5110,5140,5170,5200}, //V CH1 - 8

{4867,4884,4921,4958,4995,5032,5069,5099}, //U CH1 - 8

{5960,5980,6000,6020,6040,6060} //H CH1 - 6

Power Supply: 5V@450mA

Weight: 22.5g

Dimensions: L42.4mm * W25.8mm * H20.5mm

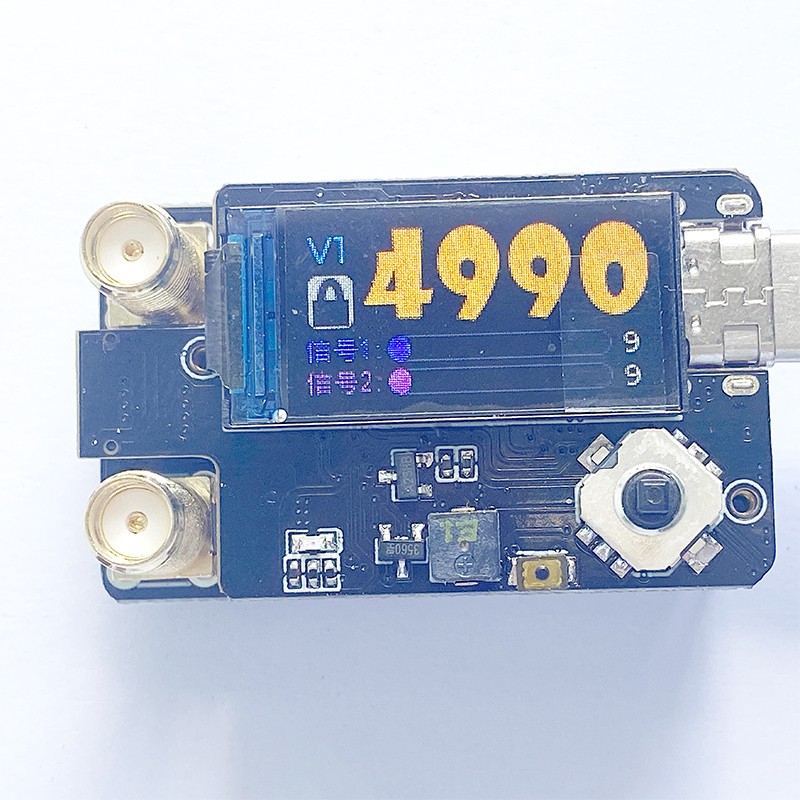

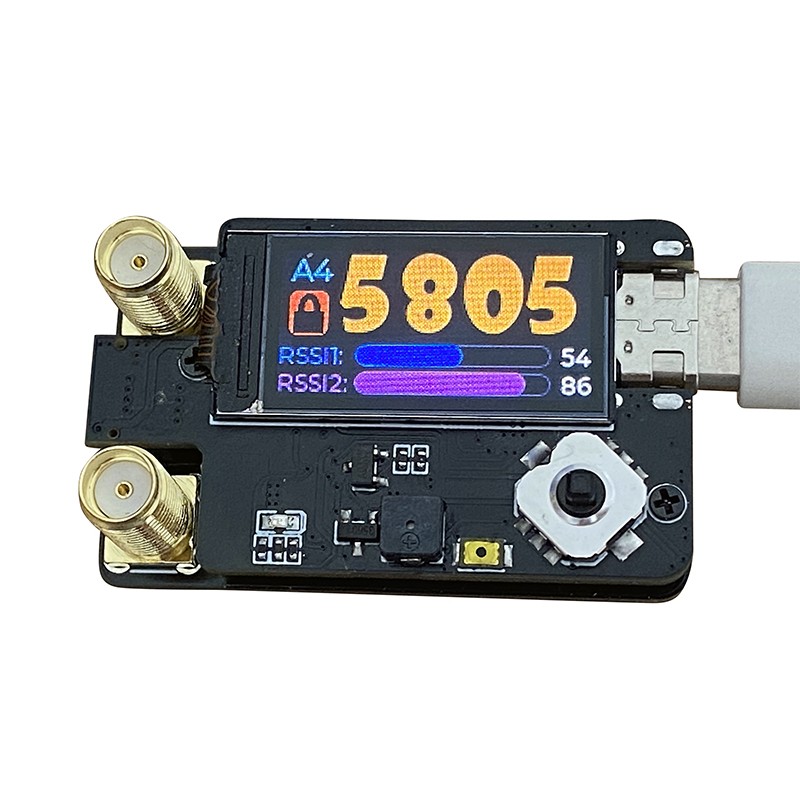

On the main interface, long - press the OK button to lock/unlock the manual channel,

and short - press to enter the menu. When unlocked, use the up, down, left,

and right keys to adjust the frequency.

The menu interface is divided into three parts: Receiver, Settings, and About.

Use the up and down keys to switch menu options, the OK key to enter sub - menus,

and the left key to return to the main interface.

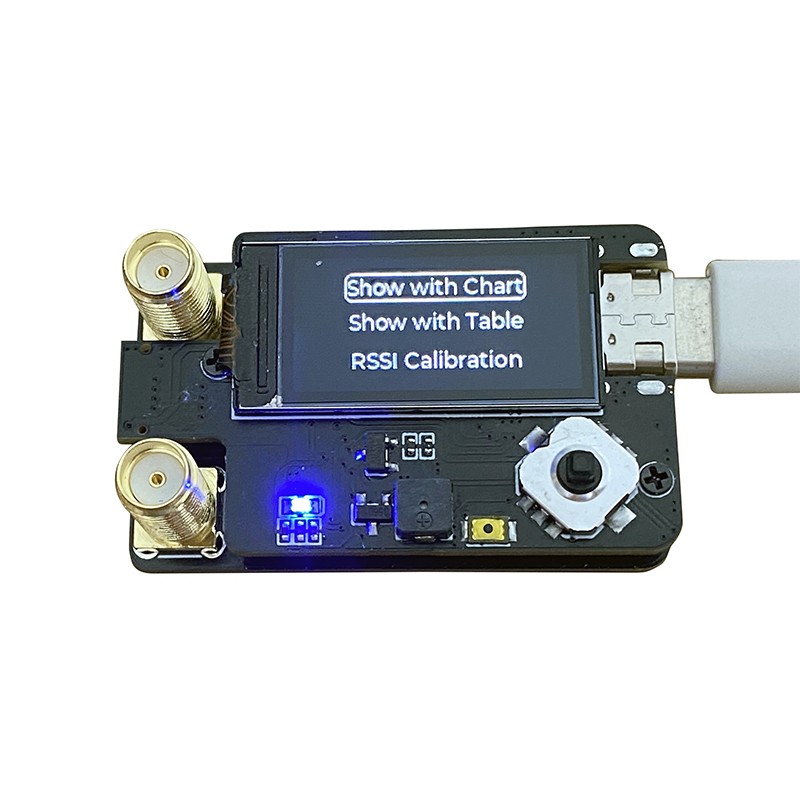

The receiver menu has three sub - contents:The spectrum scan shows

the signal strength of frequencies from 5.3G - 5.9G or 4.9G - 6.1G.

The spectrum scan display will show the channel signal strength in different - colored charts.

The channel scan is used for automatic frequency search.

After the scan is completed, the frequency will switch to the channel with the best current signal strength,

which is displayed in the upper - right corner.

Signal calibration is used to calibrate RSSI.

Failure to turn on the video transmitter will result in calibration failure. If successful, the result will be saved.

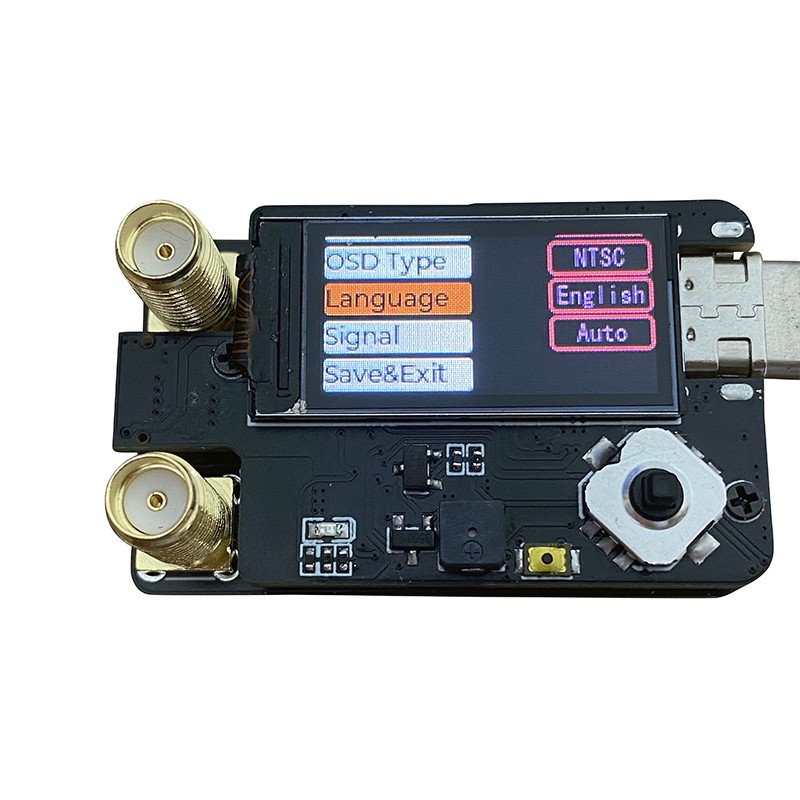

In the settings interface, you can set the display backlight intensity, fan speed,

startup animation, whether the buzzer is on, OSD standard, system language, and output signal source.

The firmware can be upgraded through the TYPE - C USB interface.

Packaging of RP - SMA Female Version Includes:

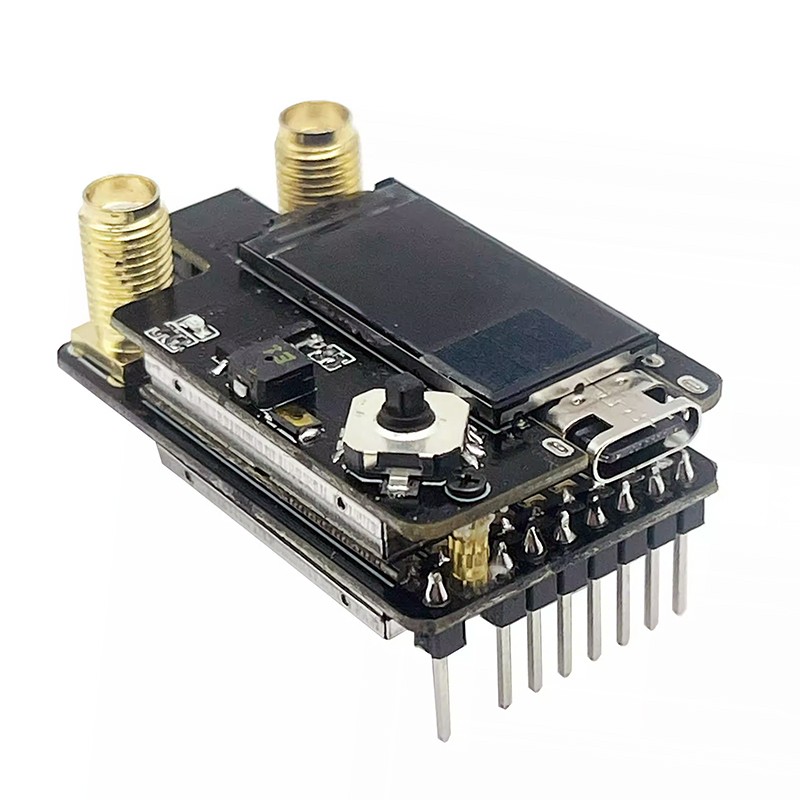

1x VRX - F1 5.8G PLUS dual - antenna receiving module (RP - SMA female)

Packaging of SMA Female Version Includes:

1x VRX - F1 5.8G PLUS dual - antenna receiving module (SMA female)
